Overview
Based on environmentally friendly expanded polypropylene foam, the MPP series of absorbing materials exhibit highly efficient electromagnetic wave absorption characteristics in the field of electromagnetic testing and are widely used in automotive antenna testing, compact vehicle testing, OTA testing of new energy vehicles, etc. Yice Technology uses carbon dioxide as the foaming agent in the manufacturing process of expanded polypropylene instead of organic foaming agents, and the absorbing material is completely environmentally friendly.

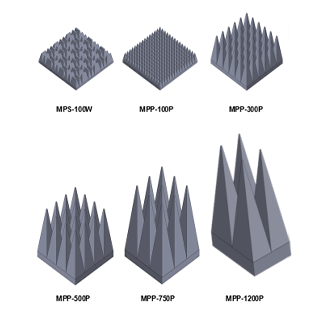

Standard Model
| Model | Height /mm | Weight /kg | The number of corner cones |
| MPP-100P | 100 | 0.95±0.2 | 15×15 |
| MPP-300P | 300 | 2.5±0.3 | 6×6 |
| MPP-500P | 500 | 4.5±0.3 | 4×4 |
| MPP-750P | 750 | 5.5±0.3 | 3×3 |
| MPP-1200P | 1200 | 7.5±0.5 | 2×2 |
* Note: The base size is uniformly 600×600mm. The above weights do not include the reflector.
Characteristic reflectance (vertical incidence, unit: dB)| Model | 100MHz | 500MHz | 1GHz | 5GHz | 18GHz | 40GHz |
| MPP-100P | -20 | -30 | -40 | -45 | ||
| MPP-300P | -30 | -40 | -50 | -50 | -50 | |
| MPP-500P | -35 | -50 | -50 | -50 | -50 | |
| MPP-750P | -16 | -38 | -50 | -50 | -50 | -50 |
| MPP-1200P | -18 | -40 | -50 | -50 | -50 | -50 |
