Overview

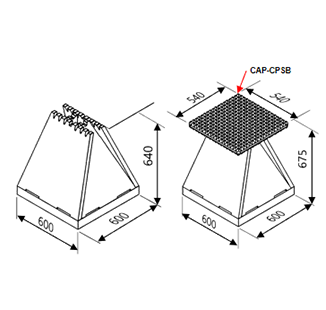

The CPS-450B is suitable for 1-meter, 3-meter and 5-meter electromagnetic compatibility anechoic chambers and is based on a low dielectric constant expandable polystyrene foam substrate.
Generally, the CPS series of absorbing materials are used in combination with ferrite tiles, thus demonstrating highly efficient electromagnetic wave absorption performance within the frequency range of 30MHz to 40GHz. In addition, the CPS series of absorbing materials have excellent flame-retardant properties.
Standard Model
| Model | 30MHz | 50MHz | 100MHz | 500MHz | 1GHz | 5GHz | 18GHz | 40GHz |
| CPS-300W | -18 | -16 | -15 | -17 | -17 | -24 | -30 | -30 |
| CPS-450W | -19 | -18 | -15 | -20 | -20 | -30 | -40 | -40 |
| CPS-450B | -18 | -20 | -18 | -19 | -18 | -18 | -18 | -18 |
| CPS-650B | -21 | -24 | -21 | -20 | -21 | -21 | -20 | -21 |
| CPS-900B | -22 | -24 | -24 | -24 | -22 | -22 | -23 | -23 |
| CPS-1600B | -24 | -27 | -34 | -28 | -26 | -27 | -28 | -28 |
