CC Series - For high-low temperature and high power anechoic chambers (high-low temperature materials)

>Dimensions/mm: 100×100×80；

>Weight/kg: 0.8；

>Operating temperature/ °C: -50 to 90；

>Endurance power: 10 kw/m².

Overview

Based on inorganic ceramic materials, the CC series features excellent high and low temperature resistance and corrosion resistance, and is suitable for high-power testing environments. Generally, the CC series materials, when used in conjunction with ferrite tiles, exhibit excellent electromagnetic wave absorption characteristics in the 30MHz to 40GHz frequency band.

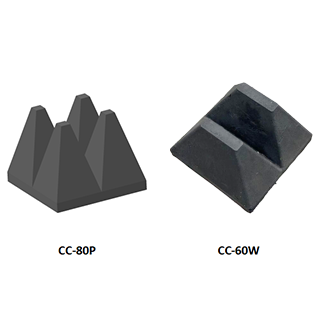

Standard Model

Characteristic reflectance (vertical incidence, unit: dB)

Model	30MHz	50MHz	100MHz	500MHz	1GHz	5GHz	18GHz
CC-80P	-20	-22	-23	-20	-25	-30	-40
CC-60W	-18	-23	-20	-20	-25	-30	-35

CC Series - For high-low temperature and high power anechoic chambers (high-low temperature materials)

Overview

Standard Model

* Note: The above data are matching the ferrite test results.
